What follows is the story of how I fixed not one, but two, different flawed Altera USB Blaster clone devices that never worked correctly after I bought them.

I recently built a few Time Sleuths for HDMI input lag testing. Time Sleuth is a neat little open-source project that allows you to measure the time it takes for your TV or monitor to display an image. The way it works is an Altera/Intel MAX 10 FPGA creates a video signal that is mostly a black screen with some blinking white boxes. It feeds the image off to a TI TFP410 DVI transmitter, and also looks for a pulse on a photodetector. It measures the difference in time between when the white box blinked on and the photodetector saw it, and displays it as a number on its generated video signal with some min/max/average stats. Pretty cool! If you’re not into soldering, you can also buy them fully assembled.

Anyway, after soldering up a board, I had to flash a bitstream to the Altera FPGA. I immediately discovered that the official Altera/Intel USB Blaster JTAG cable costs $300. I wasn’t willing to fork up that much money for a programmer I would potentially never use again, and I noticed that there are a lot of cheap clones out there, so I did some research and decided on a clone to buy.

I read many good things about the Terasic USB Blaster, but I thought that $69 was still a little on the high side for pricing, so I went for something even cheaper. In hindsight, I was completely wrong. $69 is very reasonable for a reputable product. The Terasic programmer would have been the best choice and would have avoided the mess I’m about to describe, so keep that in mind if you’re reading this and trying to decide on a programming cable to buy.

I opted for the Waveshare USB Blaster V2. Waveshare’s site seemed pretty nice, and I saw at least one pretty good recommendation of it on Reddit. I did notice an Amazon review that said it works intermittently in Linux, but I bought it despite the warning. Worst case, I could use Windows instead.

Well, it turns out that one-star review was spot on. I would even say that it was overly optimistic when describing the Linux compatibility. I couldn’t get the freaking thing to ever program an FPGA correctly at all in Linux, at least with Quartus Programmer or the related command line tools. It would fail during random parts of the programming process. Erases actually did work sometimes, but the longer the operation it was being asked to perform, the more likely it would fail. It was scary because I was starting to think I had made a mistake when building my first Time Sleuth, but then I fired up my Windows 10 VM and it programmed perfectly on the first try. I’ve confirmed that it always works fine in Windows.

I will say that I was able to get it to work with OpenOCD and UrJTAG by playing back an SVF file, but it was really slow and it felt clunky. I wanted something compatible with Quartus Programmer! I asked Waveshare about getting it to work in Linux, and this is what they said two days later:

I’m sorry that we did not test it with the Linux PC, it should have compatibility problem.

It is recommended to use in Windows PC.

At this point, I cracked it open to take a look. It’s actually pretty nice.

It uses an FTDI FT245RL and an Altera EPM3064A CPLD, as well as a Nexperia 74LVC244A buffer. I have often seen people say that the FTDI + CPLD USB Blaster clones are typically higher quality than the really cheap clone devices out there. That’s because Altera’s actual USB Blaster (version 1, anyway) uses a similar setup internally. I’m not sure if it’s quite as nice as Altera’s design, but I like seeing the 74LVC244A buffer in there. As far as I can tell, it’s being used as a level shifter to ensure compatibility with different voltages, which is how Waveshare is able to say it supports 1.2V to 5V programming voltages. I’m not convinced that 5V programming voltage would actually be in spec with the 74LVC244A’s recommended supply voltage range of 1.2V to 3.6V, but I digress.

Why would a device like this work correctly in Windows but not Linux? The Altera software looked pretty similar between Windows and Linux. I’d be shocked if they weren’t using the same codebase underneath. This seemed like the perfect thing for me to investigate, especially since I have a hardware USB sniffer. I looked at the raw USB traffic, although a hardware sniffer ended up being overkill for this. The traffic actually looked quite a bit different between Windows and Linux. I guess the Windows software assembles the JTAG commands slightly differently, and something about the way Windows does it works better with this device.

To limit the scope of what I was looking at, I decided to focus solely on Linux. Since I could get Linux to both succeed and fail during a short procedure like erasing the chip, I used Wireshark to do a usbmon capture of good and bad erases. Then I studied the captures in depth.

First, I needed to understand how the USB Blaster works. I also didn’t know much about JTAG, so I read up on it. The USB Blaster’s protocol is actually very simple. As a brief summary of the linked info, the host computer sends a bunch of bytes to the device. If the highest bit in a transmitted byte is 0, the rest of the bits contain raw state to put directly on the various JTAG pins, as well as controlling the status LED. If the highest bit is 1 instead, then the bottom 6 bits contain a length, and then there are that many bytes following that contain 8 bits that will be consecutively shifted out through TDI/TCK. So basically the byte mode is an optimized way to send data faster if you are aren’t needing to twiddle the other pins like TMS.

Bit 6 is used in both modes to tell the USB Blaster to also read data from the TDO pin and send it back to the computer. The USB Blaster sends out heartbeat packets every millisecond or so even if there’s no data that has been read since last time. The packets appear to always be prefixed with two bytes: 0x31 and 0x60. I’ve noticed that the Waveshare device sometimes sends “0x31 0x00” as the prefix instead, but I don’t think it matters.

Next, I read up on the linked JTAG documentation above. It explains how it’s a state machine and the TMS pin is used to decide how to jump around between the different states each time a TCK cycle occurs. It also provides some useful examples of how you can figure out what devices (if any) are present on the JTAG chain. I manually decoded the JTAG operations in the Wireshark USB captures. Here’s an example of a recorded packet sent to the Blaster:

0000   7e 7f 7e 7f 7e 7f 7e 7f 7e 7f 7e 7f 7c 7d 7e 7f
0010 7c d0 ff 03 b3 3f fc ff ff ff ff ff ff ff ff ff
0020 ff ff 7c 7d 7c 7d 7c 7c 7c 7c 7c 7c 7c 7c 7c 7c
0030 7c 7c 7c 7c 7c 7c 7c 7c 7c 7c 7c 7c 7c 7c 7c

And here’s the response that I got back from it:

0000   31 60 03 03 03 03 03 03 03 03 03 03 03 03 03 03
0010 03 03 03 77 43 60 0c fc 03 b3 3f fc ff ff ff ff
0020 ff ff ff 03 03 03 03 03 03 03 03 03 03 03 03 03
0030 03 03 03 03 03 03 03 03 03 03 03 03 03 03 03 03

You’ll notice that the response has one more byte than the transmission. Actually, it has one fewer byte, because the “31 60” prefix doesn’t count. The reason it has one fewer byte is because the transmitted “D0” byte has bit 7 set, so it’s indicating we’re going into byte mode for 16 bytes (the lower 6 bits are 0x10 = 16). That byte doesn’t actually perform any operation itself, so it doesn’t cause a response byte to be sent. But because bit 6 is set in it, all 16 bytes transmitted will have associated responses. They show up as the “77 43 60 … ff ff ff” in the response.

Going into the actual nitty-gritty detail of this transmission is well beyond the scope of this post, but what’s happening here is the Altera software is reading the IDCODE of the attached chip(s). It’s very hard to see in the hex dump because the bits aren’t on perfect byte boundaries, but the Altera CPLD responds with a chip ID of 0x031810DD, which is exactly what the 10M02SCE144 is supposed to respond with.

I kept following along in the USB/JTAG trace and eventually found a point where the data readback differed between the success and failure captures. The Altera software appeared to be attempting to enter the Shift-IR state, but the readback we got didn’t make sense after entering that state.

At this point I had no choice but to blame something in the adapter. It was returning different results when given the exact same input both times. It was random. It kind of seemed like it was probably something related to timing, like maybe it was right on the boundary of being out of spec on setup/hold times or something.

Here’s what the traffic looked like on an oscilloscope. In particular, this is what the optimized byte mode traffic looked like (TCK):

I did notice something a little funky with this. The pulses are 6.25 MHz. This makes sense because the oscillator is 25 MHz, so it’s being divided by 4. My understanding is designs like this, including the original USB Blaster, typically have a 6 MHz JTAG clock though. I began wondering if it’s slightly overclocked. I think that would explain intermittent behavior. I even found an old discussion from 2006 where “kawk”, who designed a CPLD bitstream for this setup, ran their design slightly overclocked at 25 MHz and it worked okay, but other people reported problems and had to slow it down.

This gave me an idea. The FTDI chip has its own internal oscillator, so I was totally free to mess around with the frequency that the CPLD was running at without interfering with any of the USB circuitry. I didn’t have any oscillators sitting around, but I did have an RPi Pico I could use. I wrote a simple program in MicroPython to set up GP0 as a 24 MHz clock signal with 50% duty cycle:

from machine import Pin, PWM
pwm = PWM(Pin(0))
pwm.freq(24000000)
pwm.duty_u16(32768)

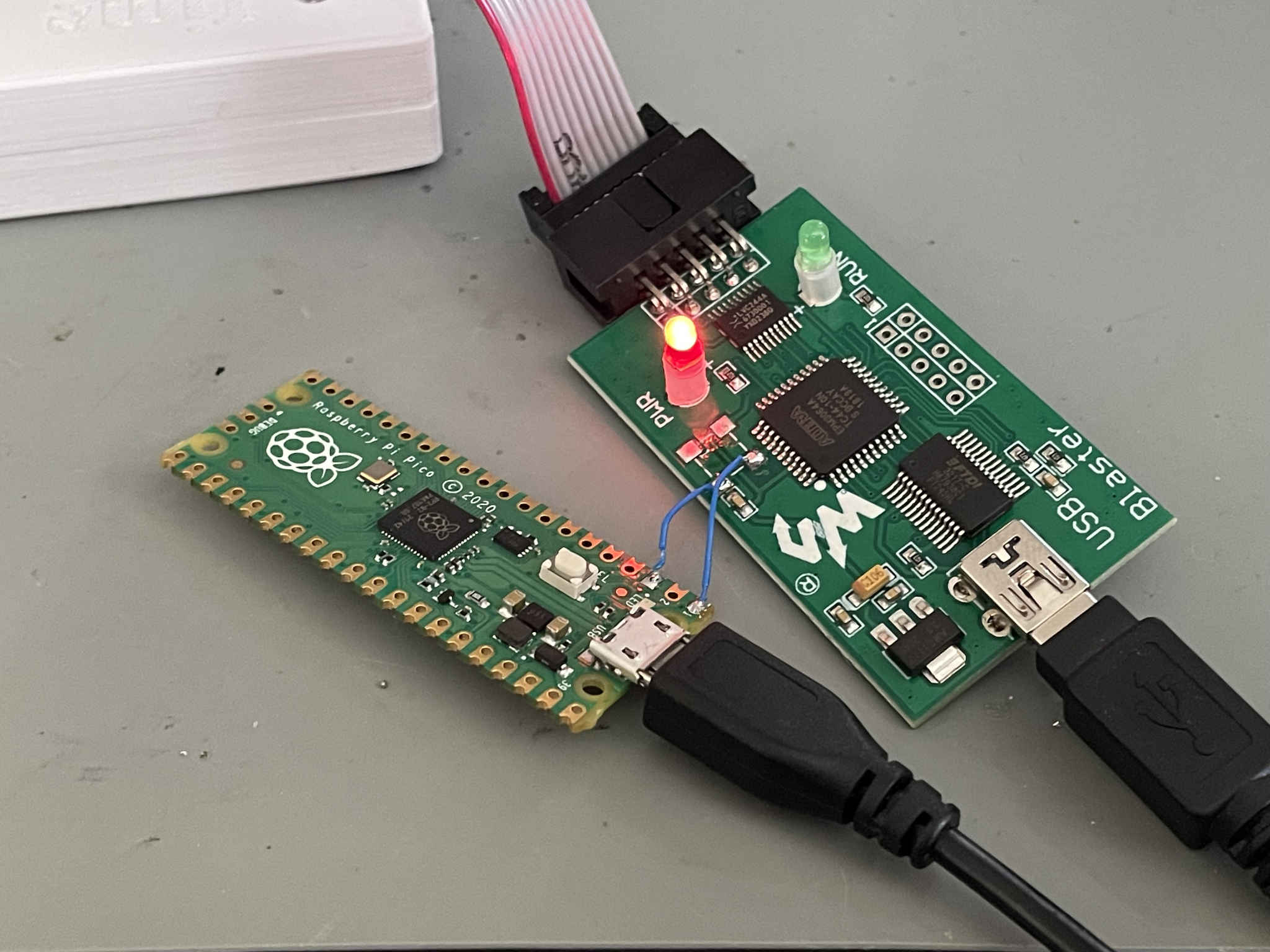

Then I removed the 25 MHz oscillator from the Waveshare Blaster and soldered a wire to the Pico’s GP0 instead (and another for ground).

When I verified the frequency with my multimeter, I discovered that the RP2040 was outputting a 25 MHz signal even though I had asked for 24 MHz. I quickly realized this is because the Pico is clocked at 125 MHz by default and the PWM frequencies would have to be an integer divisor of that. I probably could have changed the Pico’s frequency with machine.freq(), but it was easier to just keep stepping up the divider instead. (125/6) = 20.83 MHz, which is well below 24 MHz.

Running at 20.83 MHz, it still seemed erratic. So I bumped the clock speed down even more to (125/7) = 17.86 MHz. At this rate, it mostly worked! I did see it fail a few times though, so I figured I was getting closer to reliability. The next lowest possible frequency of (125/8) = 15.625 MHz seemed to be the sweet spot. It worked perfectly every time with that slower clock speed. Success!

I’m still waiting for a few random oscillators to arrive from Digi-Key so I can close this one out for good. I ordered them before I thought to try using an RP2040 as a stand-in, so the speeds I ordered were 24 MHz, 20 MHz, and 12 MHz. I wish I would have ordered a 15 or 16 MHz one as well. I’m feeling pretty confident that soldering in the 12 MHz one will solve everything and the Waveshare USB Blaster will work perfectly in Linux after that. Sure, it’ll slow everything down quite a bit, but at least it’ll be reliable.

I’m still kind of mystified that the problem never happens in Windows. I’m guessing the CPLD design has a subtle timing bug that the Windows version of Altera/Intel’s software doesn’t hit because it arranges the JTAG traffic in the USB packets completely differently.

Normally this would be the end of this type of blog post, but you may have noticed at the top that I mentioned I fixed two different USB Blaster clones. Buckle up, because we’re just getting started. After the Waveshare one didn’t work, and before I figured out what was really going on, I bought an even cheaper one on Amazon for $9.

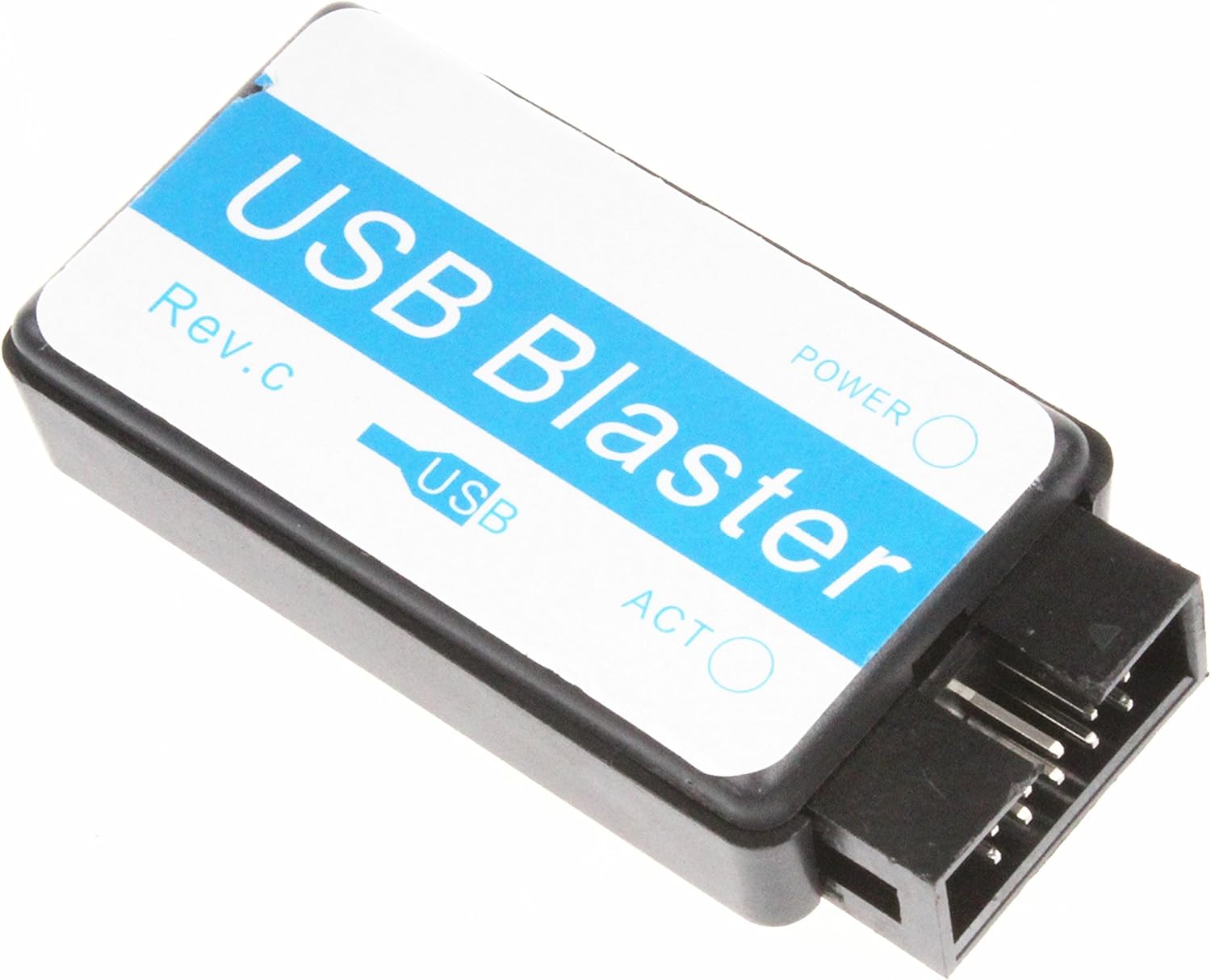

I didn’t feel very optimistic about this based on the reviews. There were a lot of reviews that said it didn’t work at all. Several reviewers said it bluescreened their Windows computers. Despite those reviews, and given how much time I had invested into this problem, I thought it would be fun to see what was wrong with this cheapo clone. Am I crazy or something?

It arrived yesterday afternoon. I plugged it into my Linux machine and tried it out. Of course, it didn’t work. No surprises there. It showed up with the correct device ID and the software correctly recognized it, but Quartus Programmer didn’t like it at all.

usb 3-2: New USB device found, idVendor=09fb, idProduct=6001, bcdDevice= 4.00
usb 3-2: New USB device strings: Mfr=1, Product=2, SerialNumber=3
usb 3-2: Product: USB-Blaster
usb 3-2: Manufacturer: Altera
usb 3-2: SerialNumber: FFFFFFFF

As far as I could tell based on a quick Wireshark USB capture, the traffic looked normal except for one thing. It wasn’t responding with any data. There were no response packets at all, not even the periodic idle “31 60” packets that should have been showing up.

Then I tried it in Windows and immediately replicated the BSOD problem that other reviewers had mentioned. It quickly gave me a blue screen with the bug check being PFN_LIST_CORRUPT. I didn’t even have enough time to open the Quartus Programmer software. Some quick Googling revealed that I wasn’t the only one experiencing this problem with cheap Altera USB Blaster clones. Other people had solutions that often involved trying custom Windows drivers, but I didn’t really want to mess with that. I didn’t really care about Windows support anyway. It didn’t work in Linux and that was all that mattered to me.

So yeah, this clone seemed totally useless, just like most of the reviews had said. It’s interesting, because I’ve also seen a lot of people online say that the cheapo clones work great. I guess there must be different versions out there and some of them work better than others. I decided to open this one up and see what it looked like inside:

There is only a single chip, which isn’t identifiable in the picture. It’s a WCH CH552G microcontroller. This is one of those extremely inexpensive microcontrollers that was making its rounds on the Internet a few years ago. It’s an 8-bit 8051 MCU that has a fair amount of neat little features. It has crystal-less USB support, for example. As of this writing, LCSC has a few in stock for $0.62 each. Not bad for the capabilities it has. However, I think this board design is very basic and is a great example of how you get what you pay for. As far as I can tell, it’s hardwired for 3.3V operation. There are series resistors on each pin, so I don’t know if that helps with avoiding damage if you hook up a lower-voltage device or what.

I searched around to see if anyone else had encountered these chips in USB Blaster clones. I saw that many of the other cheap clones have STM32 or PIC microcontrollers. I guess the market has been flooded with different versions. Some of the people who say theirs work great must have gotten a different model, or at least different firmware on it.

I found a few mentions of the CH552G being used in these. One interesting thing was a Hackaday post from a couple of months ago where someone else had developed one (closed source), as well as another project from 5 years ago with open-source firmware, based on top of Blinkinlabs’ CH55x SDCC SDK port.

This seemed right up my alley! A new idea/challenge sprung to mind. Could I get the open-source firmware from 5 years ago compiled and working on this non-functional CH552G USB Blaster clone I just bought? Would it work properly in Linux and avoid the Windows blue screen of death? The Time Sleuth runs at 3.3V so it would be completely safe to try out.

Of course I couldn’t resist taking on such a challenge. So last night, I started on it. What better way to spend a Friday night? The first task was to determine the pin mappings using continuity mode on my multimeter. The board is so simple and the MCU is so small that it didn’t take long before I had the entire pinout I needed:

  • Pin 1 – P3.2 – TMS
  • Pin 2 – P1.4 – NCS
  • Pin 3 – P1.5 – TDI
  • Pin 4 – P1.6 – TDO
  • Pin 5 – P1.7 – TCK
  • Pin 6 – ?
  • Pin 7 – ?
  • Pin 8 – ?
  • Pin 9 – P1.1 – ACTIVITY LED (ACT)
  • Pin 10 – P3.3 – ASDO
  • Pin 11 – P3.4 – NCE
  • Pin 12 – USB D+
  • Pin 13 – USB D-
  • Pin 14 – GND
  • Pin 15 – VCC
  • Pin 16 – V33

Next, I got the CH55x SDK up and running. The documentation on the SDK’s GitHub project was excellent. It didn’t take long before I was ready to try out a program to blink the activity LED on and off. I simply modified the “blink” example to use P1.1 instead of P1.7 and built it.

There are so many awesome tutorials out there about how to work with these chips, so it wasn’t really a problem to figure out how to program it. I installed ch55xtool. These chips are cool because they have a USB bootloader that puts it into a programming mode if you hold a pin high at startup. You don’t need a special programmer or anything. The datasheet says that you need to be running at 5V to flash them, but I’ve found so far that flashing works fine at 3.3V too. They do say you only get about 200 flash cycles per chip, so you can’t go crazy with reflash attempts. Oh well, they’re so inexpensive that it doesn’t matter that much.

To force it into the bootloader, I just held a wire between the 3V3 and D+ pins which were conveniently located on a header, plugged it in, and then quickly removed the wire to avoid shorting it for too long and also to allow USB communication to commence. A resistor would probably be safer.

Then it showed up as a different USB device in Linux, so I knew I had done something right:

usb 3-1: new full-speed USB device number 69 using xhci_hcd
usb 3-1: New USB device found, idVendor=4348, idProduct=55e0, bcdDevice= 2.50
usb 3-1: New USB device strings: Mfr=0, Product=0, SerialNumber=0

I briefly contemplated something in my head at this point: there was no going back as soon as I went any further. I’d erase the stock firmware on this device and my only hope would be to get this open-source firmware working. I didn’t care though. The device was useless with its original firmware so I had nothing to lose. Here’s the command I ran to flash the chip:

ch55xtool -v -f blink.bin

The flash was successful, but my blink test firmware didn’t freaking work! Nothing happened on the LED. I checked the other pins and there was no sign of life. I was pretty irritated. I really thought I had done my homework on this. I tried some other flashing utilities — even the vendor’s WCHISPTool in Windows. Nothing worked. I tried resetting all the config settings on the chip to default just in case one of the settings was screwed up, but nothing seemed to fix it. I started to worry that I had done all that reverse engineering work for nothing.

When I came to my senses after an hour or so, I realized I should start tinkering further with the sample code to see why it was failing. I noticed a call to CfgFsys() at the start of main(). I tried commenting it out, and all of a sudden the LED started blinking! (At the wrong rate, but that’s okay). Further reading in the datasheet revealed the problem as soon as I realized that CfgFsys() was writing to the CLOCK_CFG register. The SDK was defaulting to a FREQ_SYS of 24 MHz in examples/Makefile.include, but when the chip is running at 3.3V, it can only do a maximum of 16 MHz. I simply had to override FREQ_SYS to 16000000 or lower in my Makefile. Once I did that, the blinking LED demo worked and I was all set!

The next order of business was to get the open-source CH55x-USB-Blaster firmware compiling. The easiest thing to do was to drop it into the examples folder of the SDK as another example project. It was even including ../Makefile.include in its own Makefile, so I think that’s the CH55x-USB-Blaster developer’s intended way of integrating it. I added the FREQ_SYS override to its Makefile. I also modified the pin mappings. They were mostly correct, but I had to strip out a bootloader entry button and move a couple of pins around. I also noticed the code was sending a prefix of “01 60” instead of “03 60” on transmitted packets so I went ahead and changed that to match the original USB Blaster.

After I did that, I tried plugging it in…and nothing. Well, almost nothing. My computer detected a device plugged in, but nothing happened after that. In Wireshark it looked like a request for the device descriptor was being sent out, but nothing was happening in response.

usb 3-1: new full-speed USB device number 88 using xhci_hcd

Looking at the USB IRQ handler in the code, I was suspicious about the way the start-of-frame (SOF) interrupt was being handled. It didn’t look like the SOF interrupt was being cleared properly. I just disabled the SOF interrupt altogether for testing. It didn’t seem super important; it was just incrementing a counter which was later used to decide to send out an idle “03 60” packet every so often.

As soon as I disabled it, my reflashed USB Blaster clone sprang to life!

usb 3-1: new full-speed USB device number 92 using xhci_hcd
usb 3-1: New USB device found, idVendor=09fb, idProduct=6001, bcdDevice= 4.00
usb 3-1: New USB device strings: Mfr=1, Product=2, SerialNumber=3
usb 3-1: Product: USB-Blaster
usb 3-1: Manufacturer: Altera
usb 3-1: SerialNumber: C0BFA6D7

Amazingly enough, in this state, it worked completely fine in Linux. I had successfully fixed my $9 junk cheap USB Blaster to actually work correctly for flashing my Time Sleuth! I was totally stoked!

Then I plugged it into Windows to see if I had fixed the Windows compatibility, and it bluescreened right away. It was the exact same PFN_LIST_CORRUPT error as before.

What in the world? But it worked in Linux now! Why would Windows be upset?

I think what’s going on here is if your device pretends to be an FTDI chip, but it doesn’t perfectly emulate it, weird stuff happens when the official FTDI driver doesn’t see something it’s expecting. I’ll leave it to you as the reader to decide whether that’s accidental or intentional on FTDI’s part. Whether it’s accidental or not, I think it’s pretty bad that the driver can crash the system if the device doesn’t respond correctly. Anyway, I remembered that I had disabled the SOF interrupt that was part of the logic for how often to send out the empty “03 60” packets. I looked through some other code examples of how similar USB controllers handled SOF interrupts and tweaked the firmware accordingly.

With this change implemented, the SOF interrupt seems to work as intended now. I’m noticing periodic empty “03 60” packets when the programmer is in use now when I sniff the traffic in Linux, and Windows no longer crashes when it’s plugged in. I am successfully able to flash my Time Sleuths from Quartus Programmer in Linux and Windows with no problems.

After I got it fully working, I realized the activity LED was backwards. It was on most of the time and off when it was busy. I just had to invert the LED in the code. It was a quick fix. The only other weird thing I’ve noticed is that the Time Sleuth backfeeds power into the cheap USB Blaster, so I just try to plug them both into power at about the same time to be safe. I don’t think there’s anything I can do in software to fix that.

Here’s my GitHub fork of the CH55x-USB-Blaster firmware, along with a release binary you can flash to your device if you’ve somehow made the same mistake I did and bought a completely useless USB Blaster clone. Just keep in mind a few things: the circuit is very basic and only appears to be designed for 3.3V programming. This will only work if yours has the same pinout as mine. I take no responsibility if you brick your useless USB Blaster by trying this firmware out. I’ll take lots of credit if it fixes it though! Credit also goes to VladimirDuan on GitHub for the original implementation of the CH55x USB Blaster firmware, as well as Blinkinlabs for the excellent SDK port. Not to mention the developers of SDCC! It’s awesome seeing so many open-source projects help breathe a solution like this to life.

Not too bad for a night’s work, huh? I converted a $9 piece of Amazon garbage into a functional USB Blaster clone in just a few hours. I’m pretty happy with myself! I don’t want to toot my own horn too much, but it seems kind of ridiculous that these junk devices are being sold totally nonfunctional, yet it only took me one evening to piece together some open-source firmware to fix it. Do they even test these things?

I’m also satisfied with my research into the first device I looked at, the Waveshare USB Blaster. I’m pretty sure as soon as I have a slower oscillator to solder in, it will also begin working perfectly, albeit slower than it potentially could be. It would really be cool to figure out how to make a new bitstream to load into it that could operate at the full 25 MHz original clock rate. I would probably need a bit of help on such a project though.

I hope this info is useful to someone out there!
